Computer Networks Interview Questions
• Images marked with ★ are AI-generated.
1
How are different types of networks categorized?
CiscoAmazonMicrosoftTCSInfosys
Solution
Network types are classified based on the geographical area they cover or the extent of their distribution.
PAN (Personal Area Network):
•Allows devices to connect and communicate within the immediate range of an individual.
•Example: Bluetooth connections between personal devices.
LAN (Local Area Network):
•A privately owned network that functions within a limited area such as a single building.
•Example: Home networks, office networks, factory networks.
MAN (Metropolitan Area Network):
•Connects devices across an entire city.
•Example: Cable TV networks covering a metropolitan area.
WAN (Wide Area Network):
•Covers a broad geographical area, often spanning countries or continents.
•Example: The Internet is the largest WAN.
GAN (Global Area Network):
•Also referred to as the Internet, connects systems globally using satellite technology.
•Commonly called a network of WANs.
2
What is a Local Area Network (LAN), and how does it function?
CiscoMicrosoftTCSInfosysWipro
Solution
A Local Area Network (LAN) is extensively used to connect computers, laptops, and consumer electronics to facilitate resource sharing such as printers and fax machines, as well as to exchange information.
Key Characteristics:
•Privately owned and operates within a limited geographical area.
•When deployed by businesses, often termed enterprise networks.
Two Forms of LAN:
Wireless LAN (WLAN):
•Uses Wi-Fi technology and does not require physical cables.
•Increasingly popular in environments where wiring is impractical or difficult to install.
Wired LAN:
•Uses LAN cables (Ethernet) for connectivity.
•Generally more reliable and faster than wireless connections.
Common Uses:
•File and resource sharing (printers, storage).
•Internal communication within organizations.
•Internet access sharing across multiple devices.
3
Can you explain what nodes and links are in a network?
CiscoAmazonTCSInfosysCognizant
Solution
Node:
•A node is any device capable of communicating within a network.
•It is a connection point where data can be sent or received.
•Examples: Computers, laptops, printers, servers, and modems.
Link:
•A link represents the connection between two nodes in a network.
•Defines how nodes are physically or wirelessly connected.
•Includes the communication protocols that enable one node to communicate with another.
Types of Links:
Wired Links:
•Physical cables such as Ethernet, fiber optic, or coaxial cables.
•Generally faster and more reliable.
Wireless Links:
•Connections via Wi-Fi, Bluetooth, or cellular networks.
•More flexible but potentially less reliable.
Key Point:
•Together, nodes and links form the fundamental building blocks of any network — nodes are the endpoints and links are the pathways connecting them.
4
What does the term network topology mean?
CiscoMicrosoftTCSInfosysWipro
Solution
Network topology refers to the physical or logical arrangement of nodes and the connections (links) between them in a network.
It illustrates how various computers, devices, and cables are interconnected.
Two Types of Topology:
Physical Topology:
•Describes the actual physical layout of the network — how devices are physically connected using cables and hardware.
Logical Topology:
•Describes how data flows through the network, regardless of the physical layout.
Why Topology Matters:
•Determines network performance and efficiency.
•Affects fault tolerance — how well the network handles failures.
•Influences cost and complexity of installation and maintenance.
•Impacts scalability — how easily the network can grow.
Example:
•A star topology where all devices connect to a central switch is common in offices because it is easy to manage and a single cable failure only affects one device.
5
What are the various types of network topologies?
CiscoMicrosoftTCSInfosysCognizant
Solution
Bus Topology:
•All nodes connect to a single central cable called the bus.
•Suitable for a small number of devices.
•If the main bus cable fails, the entire network is affected.
Star Topology:
•Each node connects to a central hub or switch.
•More reliable — failure of one peripheral node doesn't affect others.
•If the central node fails, the whole network collapses.
•Commonly used in homes and offices.
Ring Topology:
•Every node connects to exactly two other nodes, forming a ring.
•A failure in any single node can disrupt the entire network.
•Rarely used due to complexity and cost.
Mesh Topology:
•Each node is interconnected with multiple other nodes.
•Highly robust — failure of one link only isolates the affected node.
•Infrequent due to difficulty in installation and management.
Tree Topology:
•Combination of star and bus topologies.
•Multiple star networks connected to a single bus.
•If the main bus fails, the entire network is compromised.
Hybrid Topology:
•A mixture of two or more different topologies to leverage advantages of each.

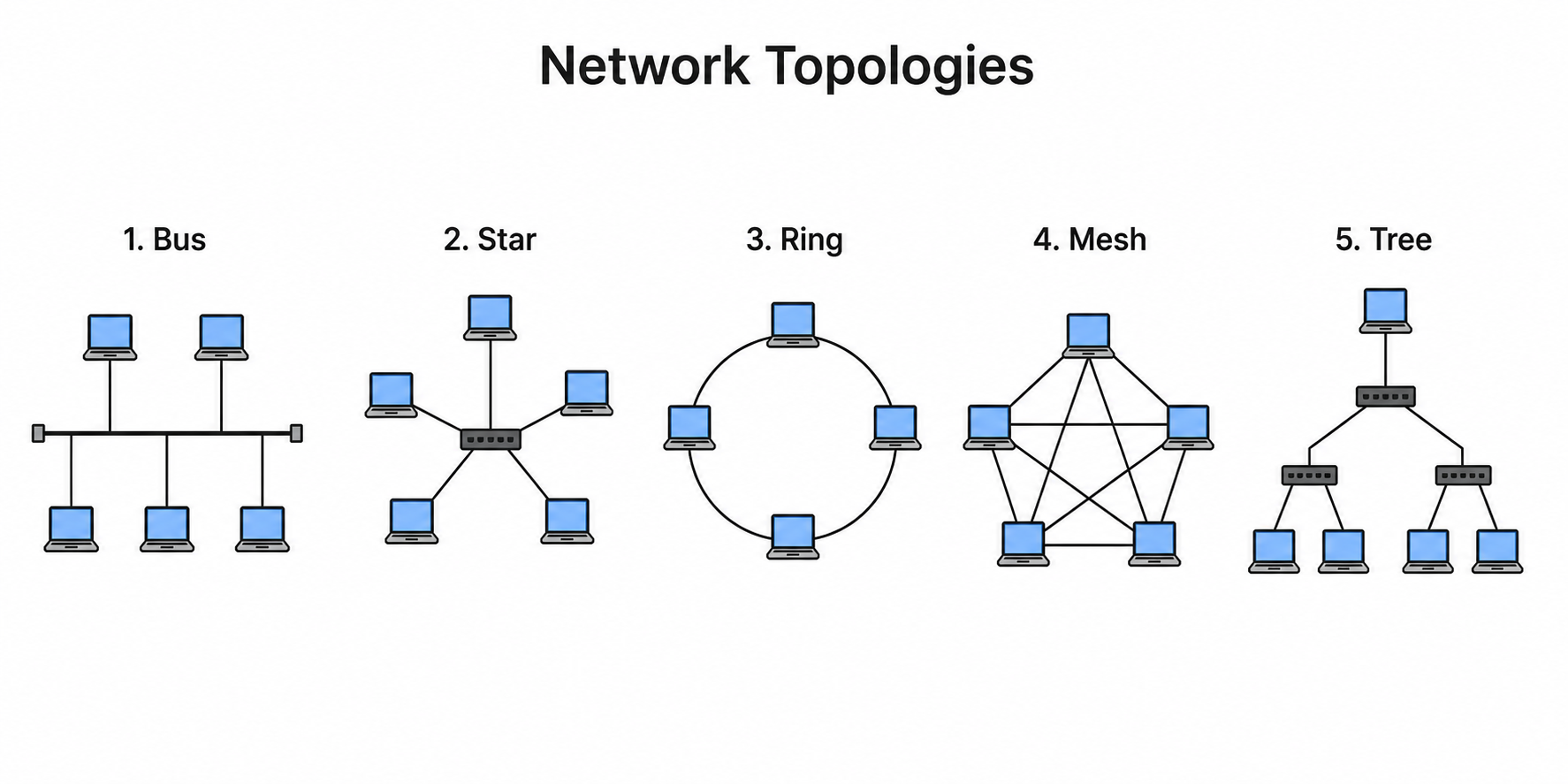

Figure 5: ★ Network Topologies (Bus, Star, Ring, Mesh, Tree, Hybrid)
6
What defines an IPv4 address, and what are its different classes?
CiscoAmazonGoogleMicrosoftTCS
Solution
An IPv4 address is a 32-bit address assigned dynamically or statically to devices on a network. It is composed of four 8-bit segments called octets, with each octet ranging from 0 to 255.
IPv4 addresses are grouped into five classes based on network size and number of hosts:
Class A:
•Range: 0.0.0.0 to 127.255.255.255
•Used for very large networks with millions of hosts.
Class B:
•Range: 128.0.0.0 to 191.255.255.255
•Suitable for medium-sized networks.
Class C:
•Range: 192.0.0.0 to 223.255.255.255
•Typically used for smaller local area networks.
Class D:
•Range: 224.0.0.0 to 239.255.255.255
•Reserved for multicast groups.
Class E:
•Range: 240.0.0.0 to 255.255.255.254
•Reserved for experimental and research purposes.
7
What are private IP addresses and special IP addresses?
CiscoAmazonGoogleMicrosoftInfosys
Solution
Private IP Addresses:
Within each IP class, specific ranges are reserved for private use and cannot be routed over the public Internet. Used internally within networks:
•Class A: 10.0.0.0 to 10.255.255.255
•Class B: 172.16.0.0 to 172.31.255.255
•Class C: 192.168.0.0 to 192.168.255.255
Special IP Addresses:
Loopback Address:
•Range: 127.0.0.1 to 127.255.255.255
•Reserved for loopback or network testing purposes.
•Used to refer back to the host machine itself.
•Commonly used as 127.0.0.1 (localhost) for testing network applications locally.
Why Private IPs Matter:
•Conserve public IP addresses by allowing multiple devices to share one public IP via NAT.
•Provide an additional layer of security as they are not directly accessible from the Internet.
•Enable internal network communication without using public address space.
8
What is meant by internetworking?
CiscoAmazonTCSInfosysWipro
Solution
Internetworking refers to the process of connecting multiple distinct networks or segments together through intermediary devices such as routers or gateways.
This interconnected system functions as a single large network, allowing communication and data exchange across various public, private, commercial, industrial, or governmental networks.
Key Points:
•The term originated from the concept of interconnected networks.
•Encompasses the technologies, products, and procedures used to create and manage combined networks.
•Forms the basis of the Internet — the largest example of internetworking.

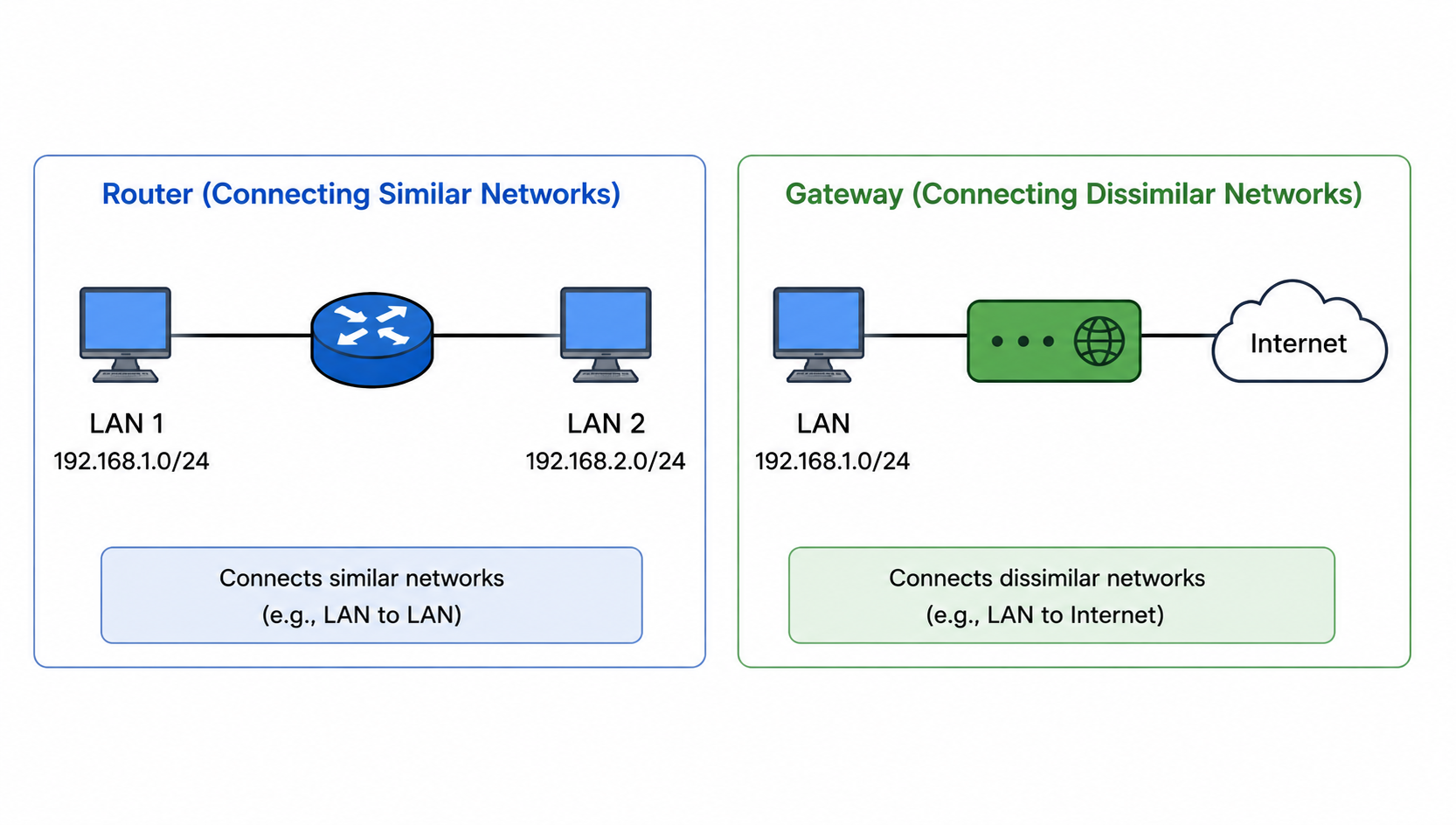

Intermediary Devices Used:
•Routers: Direct data packets between networks based on IP addresses.
•Gateways: Connect networks using different protocols or architectures.
•Bridges: Connect two similar network segments.
Benefits:
•Enables global communication across heterogeneous networks.
•Allows resource sharing across organizational and geographical boundaries.
•Provides scalability by interconnecting networks of different sizes and types.
9
Could you explain what a VPN is?
CiscoPalo AltoAmazonMicrosoftCloudflare
Solution
A Virtual Private Network (VPN) is a technology that establishes a secure and encrypted connection through a less secure network, commonly the Internet.
How it Works:
•Extends a private network across a public one.
•Users appear as if they are part of the private network even while physically remote.
•Uses tunneling protocols to ensure data traveling between the user and the private network is encrypted and secure from interception.
Key Features:
Encryption:
•All data transmitted through the VPN is encrypted, making it unreadable to interceptors.
Tunneling:
•Creates a secure tunnel through the public network for private data transmission.
Anonymity:
•Masks the user's real IP address, providing privacy and anonymity.
Common Use Cases:
•Remote work — employees securely access company resources from home.
•Privacy — browsing without exposing personal data to ISPs.
•Geo-restriction bypass — accessing content restricted to specific regions.
•Secure public Wi-Fi — protecting data on unsecured networks.
10
What are the different categories of VPNs?
CiscoPalo AltoAmazonMicrosoftCloudflare
Solution
The different types of VPNs include:
Access VPN (Remote Access VPN):
•Supports remote connectivity for mobile users and telecommuters.
•Serves as an alternative to traditional dial-up or ISDN connections.
•Offers broad connectivity at a relatively low cost.
•Example: An employee working from home connecting to the company network.
Site-to-Site VPN:
•Commonly used by large organizations with multiple office locations.
•Connects the networks of different sites securely over the Internet.
•Has two subtypes:
Intranet VPN:
•Connects remote offices of the same organization using shared infrastructure.
•Maintains private WAN-like accessibility policies.
Extranet VPN:
•Connects external entities such as suppliers, customers, or partners.
•Uses shared infrastructure but with dedicated connections.
•Allows controlled access to specific parts of the internal network.
Key Difference:
•Access VPN connects individual users to a network.
•Site-to-Site VPN connects entire networks to each other.
11

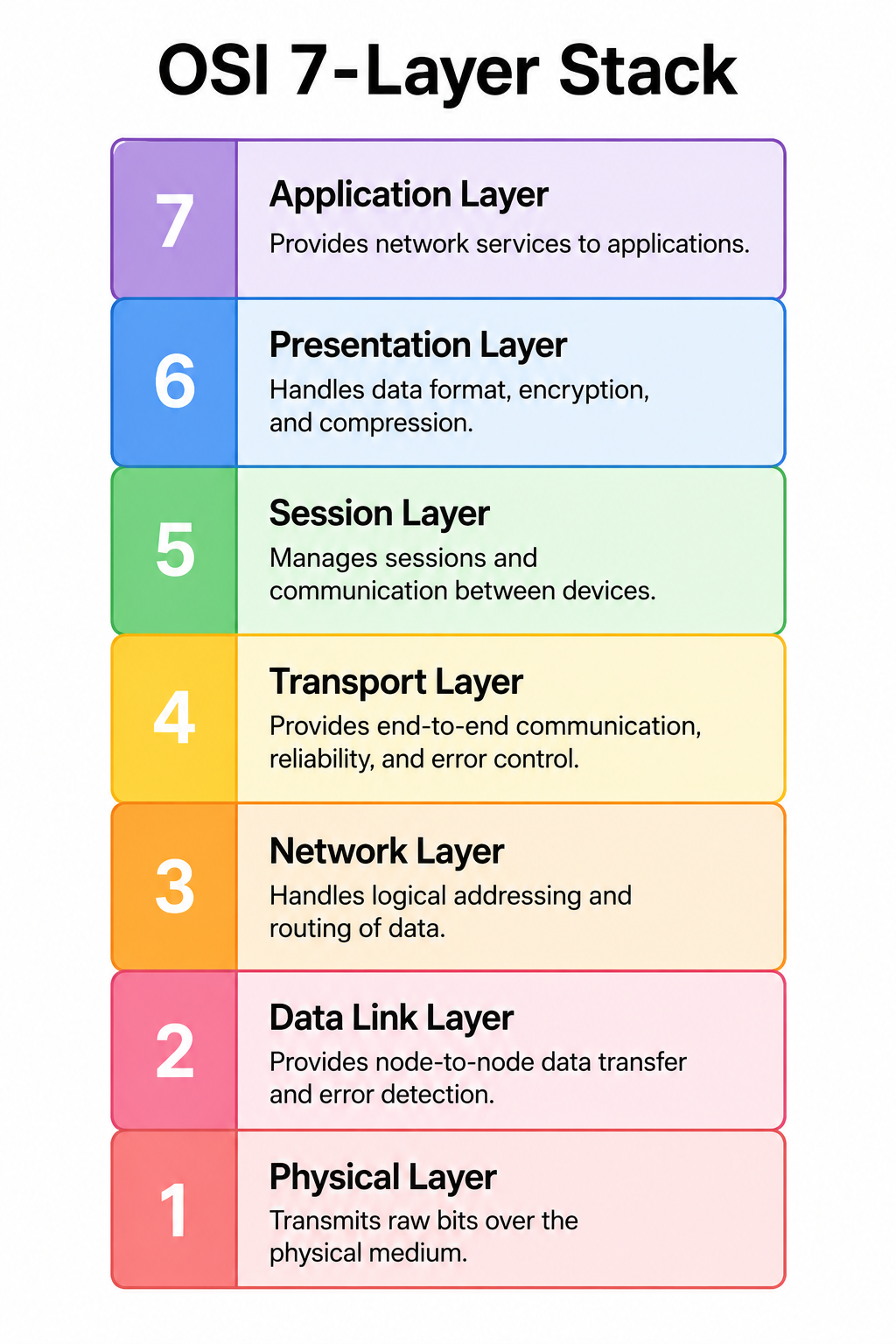

Can you describe the OSI Reference Model?
CiscoAmazonGoogleMicrosoftTCS
Solution
The OSI (Open Systems Interconnection) model is a conceptual framework developed by ISO to standardize communication functions of telecommunication or computing systems without regard to their underlying internal structure and technology.
Key Purpose:
•Enables diverse communication systems to interoperate by separating network functions into different abstraction layers.
•Each layer has a defined function guided by internationally recognized protocols.
The 7 Layers (top to bottom):
•7 - Application: User-facing protocols — HTTP, HTTPS, FTP, DNS, SMTP.
•6 - Presentation: Data translation, encryption, compression — SSL/TLS, JPEG.
•5 - Session: Manages sessions and connections between applications.
•4 - Transport: End-to-end communication, reliability — TCP, UDP.
•3 - Network: Logical addressing and routing — IP, routers.
•2 - Data Link: Physical addressing (MAC), error detection — Ethernet, switches.
•1 - Physical: Raw bit transmission — cables, fiber, radio signals.
Benefits:
•Promotes interoperability between different vendors and technologies.
•Simplifies troubleshooting by isolating issues to specific layers.
Figure 11: ★ OSI Reference Model (7 Layers)
12
Which layers in the OSI model are considered software or user support layers?
CiscoAmazonMicrosoftTCSInfosys
Solution
The layers considered software or user support layers in the OSI model are the upper three layers:
Layer 7 — Application Layer:
•The topmost layer that directly interacts with the end user.
•Provides network services to applications.
•Protocols: HTTP, HTTPS, FTP, DNS, SMTP, POP3.
Layer 6 — Presentation Layer:
•Responsible for data translation, encryption, and compression.
•Ensures data is in a usable format for the application layer.
•Protocols: SSL/TLS, JPEG, ASCII, MPEG.
Layer 5 — Session Layer:
•Manages sessions and connections between communicating applications.
•Handles session establishment, maintenance, and termination.
•Protocols: NetBIOS, RPC, PPTP.
Why They Are Called User Support Layers:
•These layers are primarily concerned with application-level data handling.
•They deal with how data is presented and used by applications and users.
•They are implemented mainly in software rather than hardware.
•They abstract the complexity of the lower layers from application developers.
13
Which layers in the OSI model are hardware or network support layers?
CiscoAmazonMicrosoftTCSWipro
Solution
The hardware or network support layers in the OSI model are the lower three layers:
Layer 3 — Network Layer:
•Responsible for logical addressing and routing of data packets.
•Determines the best path for data to travel across interconnected networks.
•Devices: Routers.
•Protocols: IP, ICMP, OSPF.
Layer 2 — Data Link Layer:
•Handles physical addressing (MAC addresses) and error detection.
•Manages how data is formatted for transmission over the physical network.
•Devices: Switches, bridges.
•Protocols: Ethernet, Wi-Fi (802.11).
Layer 1 — Physical Layer:
•Deals with the actual physical transmission of raw bits over a medium.
•Defines hardware elements such as cables, connectors, and signal specifications.
•Devices: Hubs, repeaters, network cables, fiber optics.
Why They Are Called Hardware/Network Support Layers:
•These layers are primarily implemented in hardware.
•They deal with the physical movement of data across networks.
•They are responsible for the actual transmission infrastructure.
14
At which OSI layer are headers and trailers added to data?
CiscoAmazonGoogleTCSInfosys
Solution
In the OSI model, headers and trailers are added at specific layers as data moves downward through the stack — a process called encapsulation.
Headers are added at:
Layer 6 — Presentation Layer:
•Adds formatting, encryption, and compression information.
Layer 5 — Session Layer:
•Adds session management information.
Layer 4 — Transport Layer:
•Adds port numbers and sequence numbers for reliable delivery.
Layer 3 — Network Layer:
•Adds source and destination IP addresses for routing.
Trailer is added at:
Layer 2 — Data Link Layer:
•Adds both a header (MAC addresses) and a trailer (error detection like CRC).
•The trailer is unique to this layer and used for error checking.
Key Concept — Encapsulation:
•Each layer wraps the data from the layer above with its own header (and trailer at Layer 2).
•This process is called encapsulation going down the stack.
•The reverse process (decapsulation) happens at the receiving end as data moves up the layers.
15
What occurs in the OSI model when data moves from lower to upper layers?
CiscoMicrosoftTCSInfosysCognizant
Solution
As data packets move from the lower layers to the upper layers in the OSI model, the process of decapsulation occurs.
What Happens:
•The headers that were previously added during encapsulation (when data moved downward) are removed sequentially at each layer.
•Each layer reads its corresponding header, processes the relevant information, and strips it off before passing the data to the layer above.
•This continues until the original payload is fully extracted at the Application Layer for the receiving application to use.
Layer-by-Layer Process (receiving side):
•Layer 1 (Physical): Receives raw bits and passes electrical/optical signals up.
•Layer 2 (Data Link): Removes the frame header and trailer (checks MAC address and CRC).
•Layer 3 (Network): Removes the IP header (checks destination IP).
•Layer 4 (Transport): Removes the transport header (checks port numbers, reassembles segments).
•Layer 5-7 (Session/Presentation/Application): Further decapsulation until the original data reaches the application.
Summary: Moving upward = removing headers = decapsulation.
16
What happens in the OSI model as data moves from upper to lower layers?
CiscoMicrosoftTCSInfosysWipro
Solution
When data packets move from the upper layers to the lower layers in the OSI model, the process of encapsulation occurs.
What Happens:
•Headers are added at each layer as the data travels downward.
•These headers contain essential control information required for correct data transmission and delivery.
•Each layer adds its own header (and Layer 2 adds a trailer) before passing the data to the layer below.
Layer-by-Layer Process (sending side):
•Layer 7 (Application): Original data/message is created.
•Layer 6 (Presentation): Adds encryption/formatting header.
•Layer 5 (Session): Adds session management header.
•Layer 4 (Transport): Adds port numbers and sequence info → becomes a segment.
•Layer 3 (Network): Adds IP addresses → becomes a packet.
•Layer 2 (Data Link): Adds MAC addresses + CRC trailer → becomes a frame.
•Layer 1 (Physical): Converts to bits for transmission over the medium.
Summary: Moving downward = adding headers = encapsulation.
17
Can you explain the TCP/IP Reference Model?
CiscoAmazonGoogleMicrosoftTCS
Solution
The TCP/IP Reference Model is a streamlined version of the OSI model, comprising four layers. It was developed by the U.S. Department of Defense in the 1980s.
Named after its two core protocols:
•TCP (Transmission Control Protocol)
•IP (Internet Protocol)
Why It Was Created:
•Designed for practical, real-world network communication.
•Built to survive partial network failures — originally designed for military use.
•More flexible and less rigid than the OSI model.
Key Characteristics:
•4 layers instead of OSI's 7.
•Combines the OSI's upper three layers (Application, Presentation, Session) into a single Application Layer.
•Combines the OSI's Physical and Data Link layers into a single Link Layer.
•It is the foundation of the modern Internet.
Protocols:
•Each layer uses specific protocols — HTTP/FTP at Application, TCP/UDP at Transport, IP at Internet, and Ethernet at Link layer.
Practical Significance:
•Every device connected to the Internet uses the TCP/IP model for communication.
18
What are the four layers of the TCP/IP Reference Model and their functions?
CiscoAmazonGoogleMicrosoftFlipkart
Solution
The four layers of the TCP/IP Reference Model are:
1. Link Layer (Network Access Layer):
•Manages physical and logical connections such as Ethernet or serial lines.
•Handles hardware addressing (MAC) and physical data transmission.
•Corresponds to OSI Layers 1 and 2.
•Protocols: Ethernet, Wi-Fi, ARP.
2. Internet Layer:
•The critical layer responsible for routing IP packets to their destination across interconnected networks.
•Handles logical addressing and path determination.
•Corresponds to OSI Layer 3.
•Protocols: IP, ICMP, OSPF.
3. Transport Layer:
•Provides end-to-end communication services, enabling two hosts to maintain a conversation.
•Handles reliable or fast delivery of data.
•Corresponds to OSI Layer 4.
•Protocols: TCP (reliable), UDP (fast).
4. Application Layer:
•Encompasses all higher-level protocols that provide network services to applications.
•Combines OSI Layers 5, 6, and 7.
•Protocols: HTTP, HTTPS, FTP, DNS, SMTP, POP3.

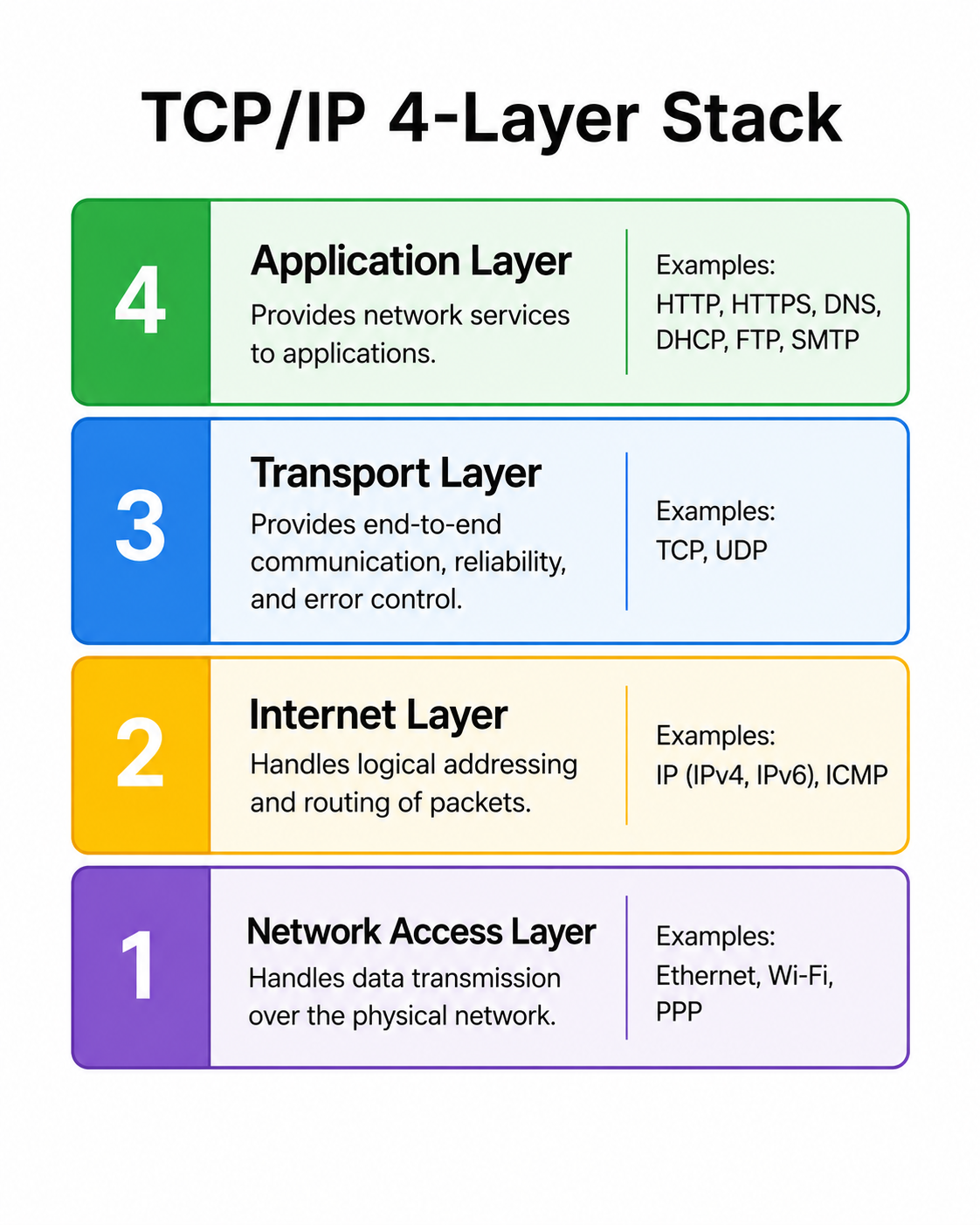

Figure 18: ★ TCP/IP Reference Model (4 Layers)
19
How does the OSI Reference Model differ from the TCP/IP Reference Model?
CiscoAmazonGoogleMicrosoftTCS
Solution
Key Differences between OSI and TCP/IP:
Number of Layers:
•OSI has 7 layers.
•TCP/IP has 4 layers.
Layer Boundaries:
•OSI defines fixed boundaries and specific functions for each layer.
•TCP/IP has a more flexible architecture without strict boundaries.
Reliability:
•OSI is generally considered less reliable in practice.
•TCP/IP is designed for high reliability and is the foundation of the Internet.
Approach:
•OSI follows a vertical layering approach — strictly separates functions.
•TCP/IP follows a horizontal layering approach — more integrated layers.
Development:
•OSI was developed by ISO as a theoretical framework.
•TCP/IP was developed by the U.S. Department of Defense for practical use.
Usage:
•OSI is primarily used as a reference/teaching model.
•TCP/IP is the actual protocol suite used on the Internet today.
Application Layer:
•OSI splits it into three layers (Session, Presentation, Application).
•TCP/IP combines all three into a single Application Layer.

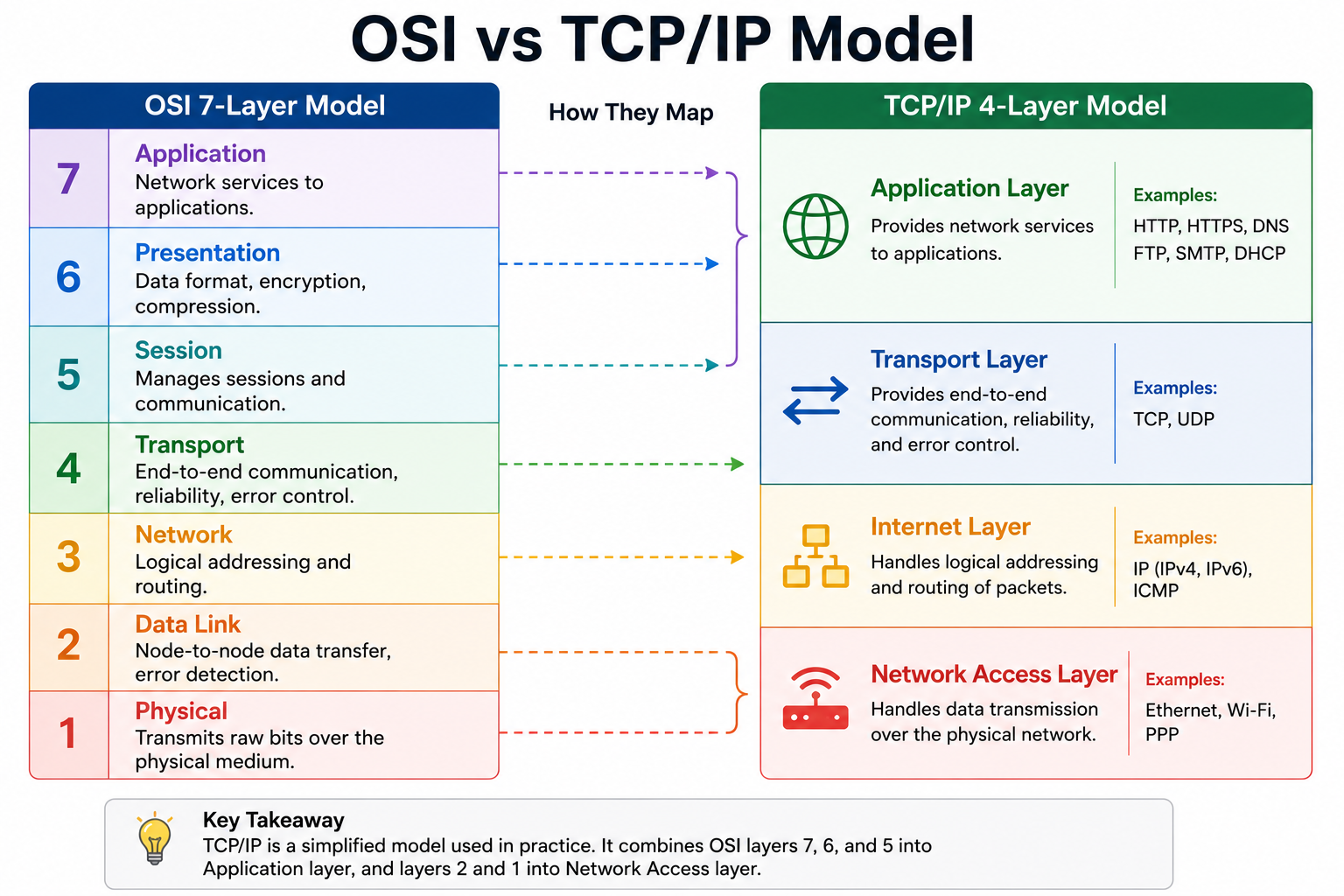

Figure 19: ★ OSI vs TCP/IP Reference Models
20
Where does transmission media fit within the OSI model?
CiscoMicrosoftTCSInfosysWipro
Solution
In the OSI model, physical transmission media corresponds to the Physical Layer — Layer 1.
Physical Layer Responsibilities:
•Defines the electrical, mechanical, and procedural specifications for activating and deactivating physical connections.
•Responsible for transmission and reception of raw bit streams over a physical medium.
•Deals with signal types — electrical, optical, or radio signals.
Types of Transmission Media at Layer 1:
Guided (Wired) Media:
•Twisted Pair Cable — commonly used in Ethernet (e.g., Cat5, Cat6).
•Coaxial Cable — used in cable TV and older Ethernet networks.
•Fiber Optic Cable — uses light signals for high-speed, long-distance transmission.
Unguided (Wireless) Media:
•Radio Waves — used in Wi-Fi and cellular networks.
•Microwaves — used in satellite and point-to-point communication.
•Infrared — used in short-range communication like TV remotes.
Key Point:
•Transmission media is below the OSI model conceptually but is managed and defined by the Physical Layer specifications.
21
What are the HTTP and HTTPS protocols?
GoogleAmazonMicrosoftCloudflareTCS
Solution
HTTP (HyperText Transfer Protocol):
•The protocol defining rules for transmitting information on the World Wide Web.
•Facilitates communication between web browsers and servers.
•Operates as a stateless protocol — each request is independent with no memory of previous requests.
•Runs at the Application Layer over TCP.
•Uses port 80 by default.
•Data is transmitted in plain text — not secure for sensitive information.
HTTPS (HTTP Secure):
•A secure extension of HTTP that uses SSL/TLS encryption protocols.
•Protects data transmission and verifies server identity via digital certificates.
•Uses port 443 by default.
•Data is encrypted — cannot be read by interceptors.
•Essential for banking, e-commerce, and login pages.
Key Difference:
•HTTP → plain text, less secure, port 80.
•HTTPS → encrypted, secure, port 443.
How to identify: HTTPS pages show a padlock icon in the browser address bar.
22
How is the HTTPS protocol defined?
GoogleAmazonMicrosoftCloudflareMozilla
Solution
HTTPS (HyperText Transfer Protocol Secure) is an advanced and secure version of HTTP. It is the standard protocol for secure communication on the World Wide Web.
Key Characteristics:
•Operates on port 443 by default.
•Uses SSL (Secure Sockets Layer) or TLS (Transport Layer Security) protocols to encrypt communication.
•Ensures confidentiality and security during data exchange on the web.
How HTTPS Works:
1. Client requests a secure connection to the server.
2. Server sends its SSL/TLS certificate containing the public key.
3. Client verifies the certificate with a trusted Certificate Authority (CA).

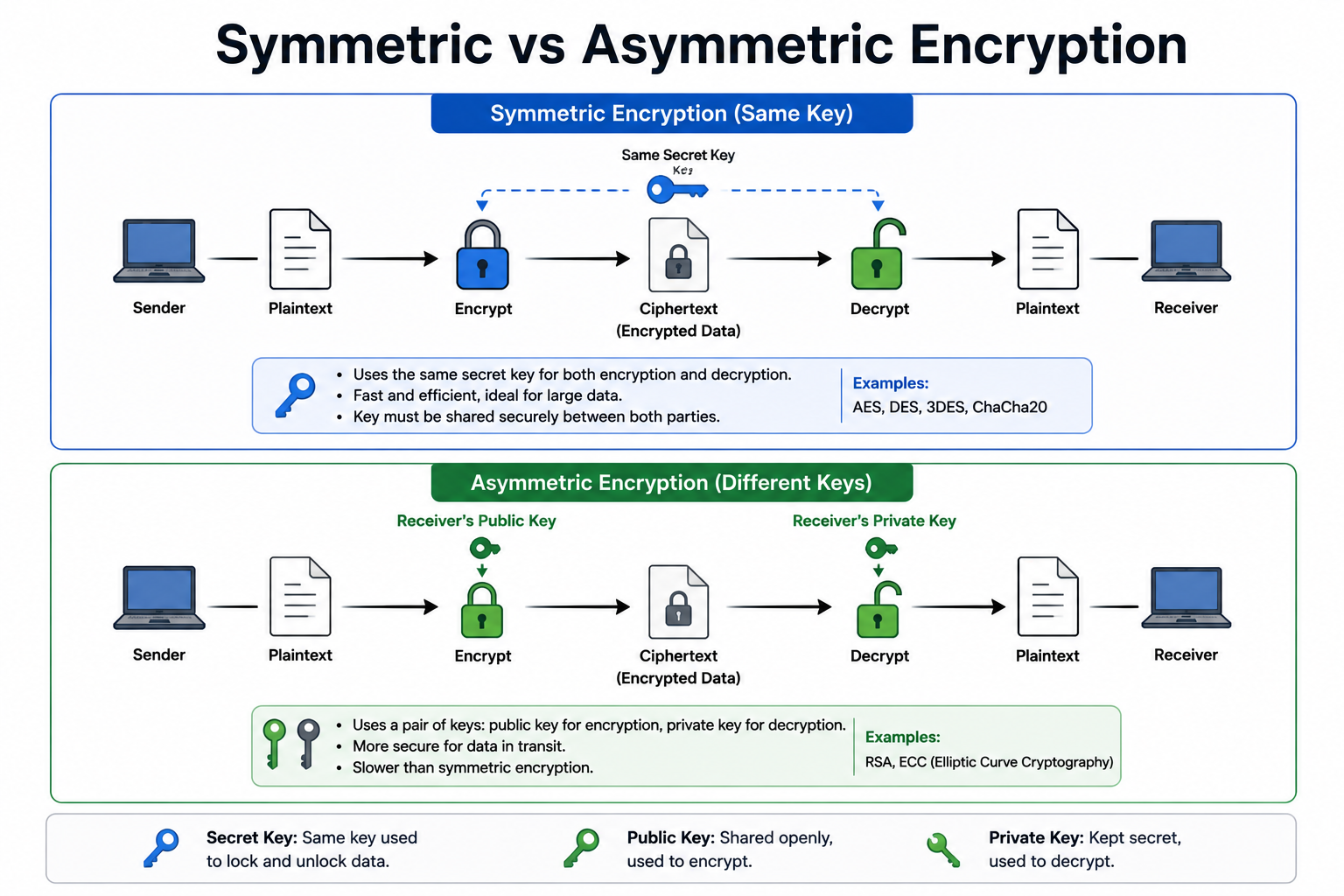

4. A session key is established using asymmetric encryption.
5. All subsequent data is transmitted using symmetric encryption with the session key.
Benefits:
•Data Encryption: Prevents eavesdropping on transmitted data.
•Data Integrity: Ensures data is not tampered with during transmission.
•Authentication: Verifies the website's identity to prevent impersonation.
Modern Importance:
•Required for SEO ranking — Google prioritizes HTTPS sites.
•Mandatory for handling payment information (PCI DSS compliance).

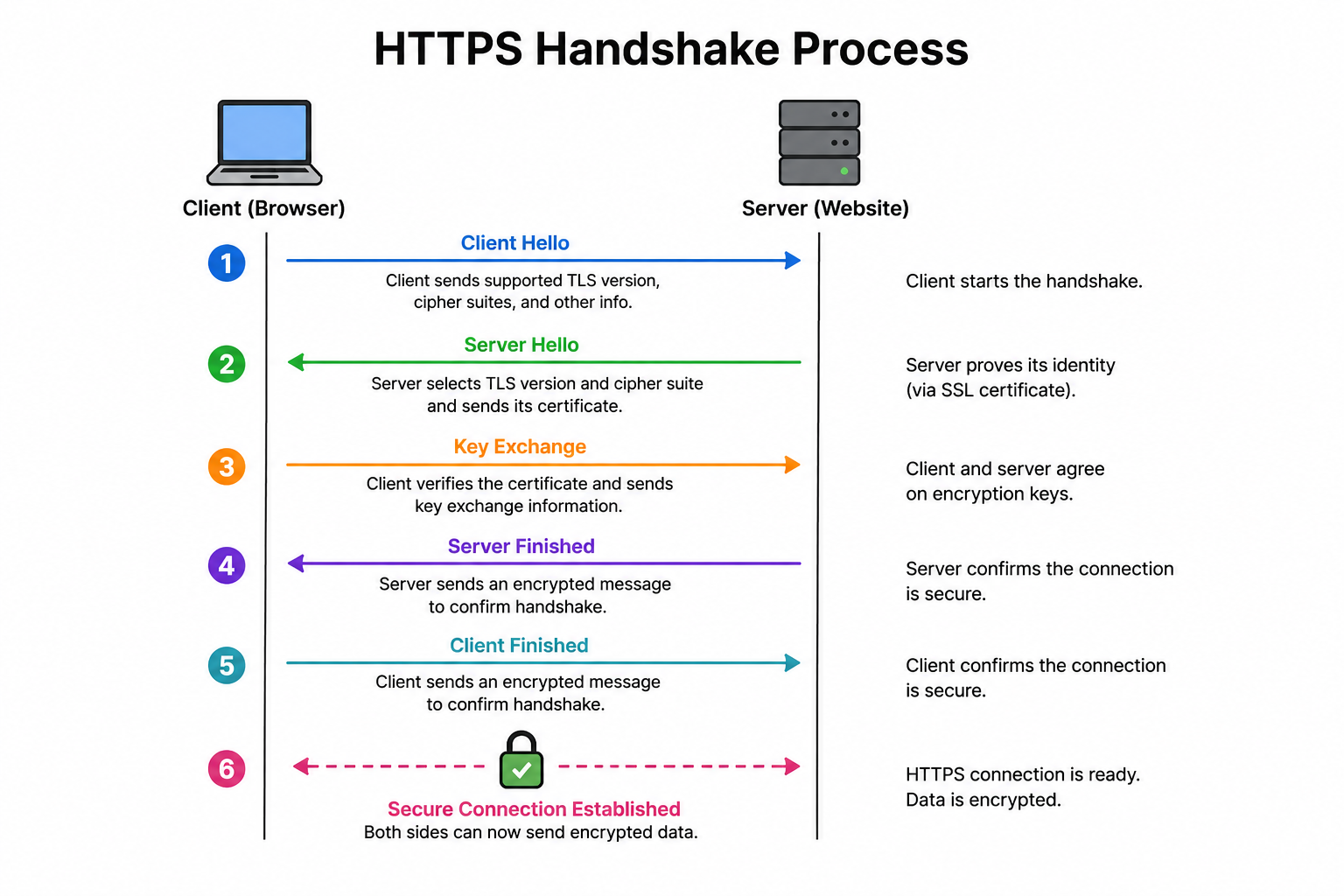

Figure 22: ★ HTTPS Protocol Workflow
23
What is the SMTP protocol used for?
GoogleMicrosoftAmazonTCSInfosys
Solution
SMTP (Simple Mail Transfer Protocol) is the standard protocol for sending emails between servers.
Key Characteristics:
•Defines the communication rules for email transfer.
•Supports both end-to-end and store-and-forward email delivery.
•Listens continuously on port 25 by default.
•Modern implementations also use port 587 for submission and port 465 for SMTPS (SMTP over SSL).
How SMTP Works:
1. Email client sends a message to the SMTP server.
2. SMTP server looks up the recipient's mail server using DNS (MX records).
3. The message is forwarded to the recipient's SMTP server.
4. The recipient retrieves the email using POP3 or IMAP.
SMTP vs Other Email Protocols:
•SMTP — used for sending emails.
•POP3 — used for downloading emails to a local device.
•IMAP — used for accessing and managing emails on the server.
Example:
•When you click "Send" in Gmail or Outlook, SMTP handles the delivery of your email to the recipient's mail server.
24

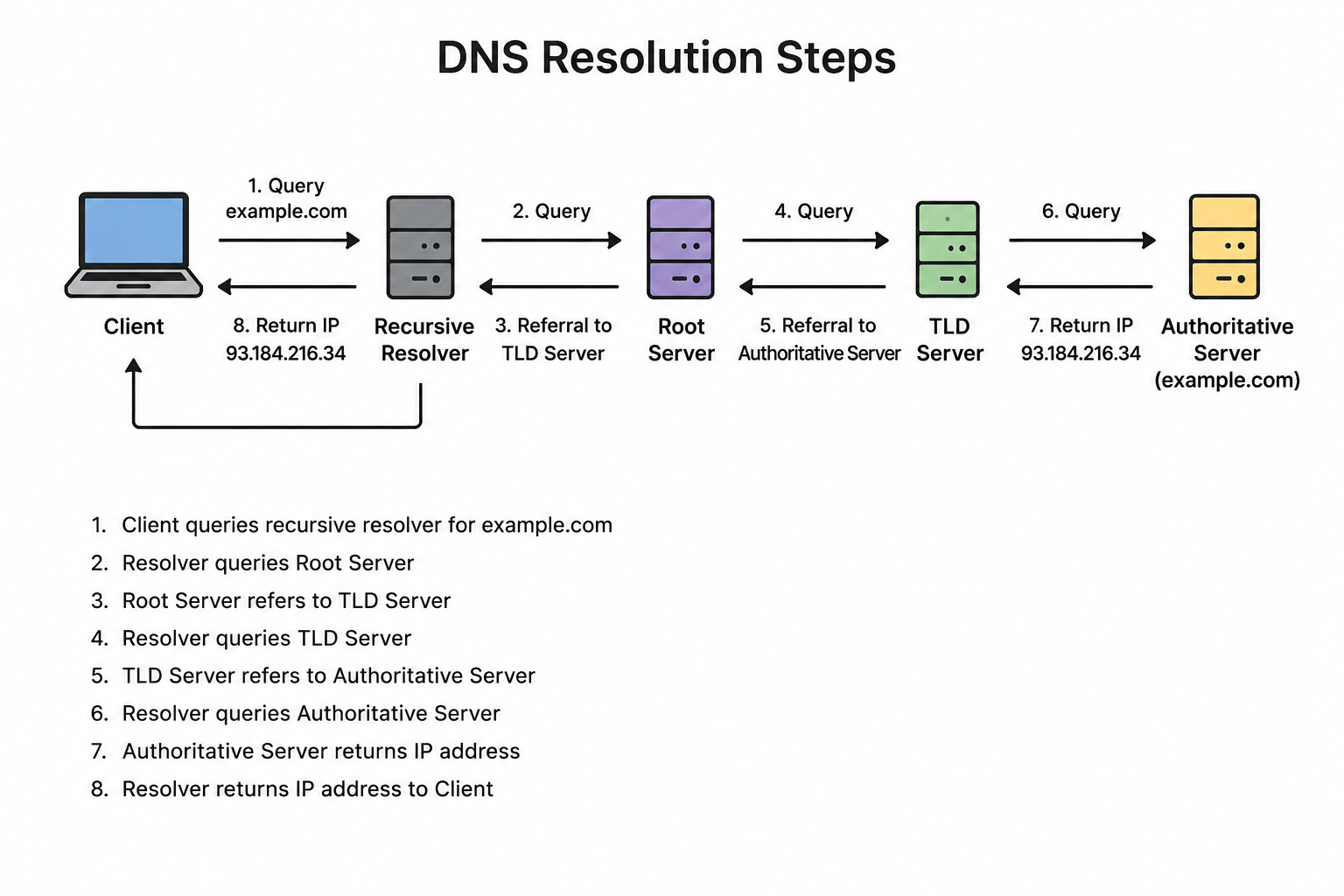

What does DNS stand for, and what does it do?
CloudflareAmazonGoogleMicrosoftAkamai
Solution
DNS stands for Domain Name System.
It is a hierarchical and decentralized naming system for devices and services connected to the Internet.
Primary Function:
•Translates human-readable domain names like `interviewbit.com` into their corresponding IP addresses such as `172.217.166.36`.
•Allows users to access websites using easy-to-remember names instead of numeric IP addresses.
DNS operates by default on port 53.

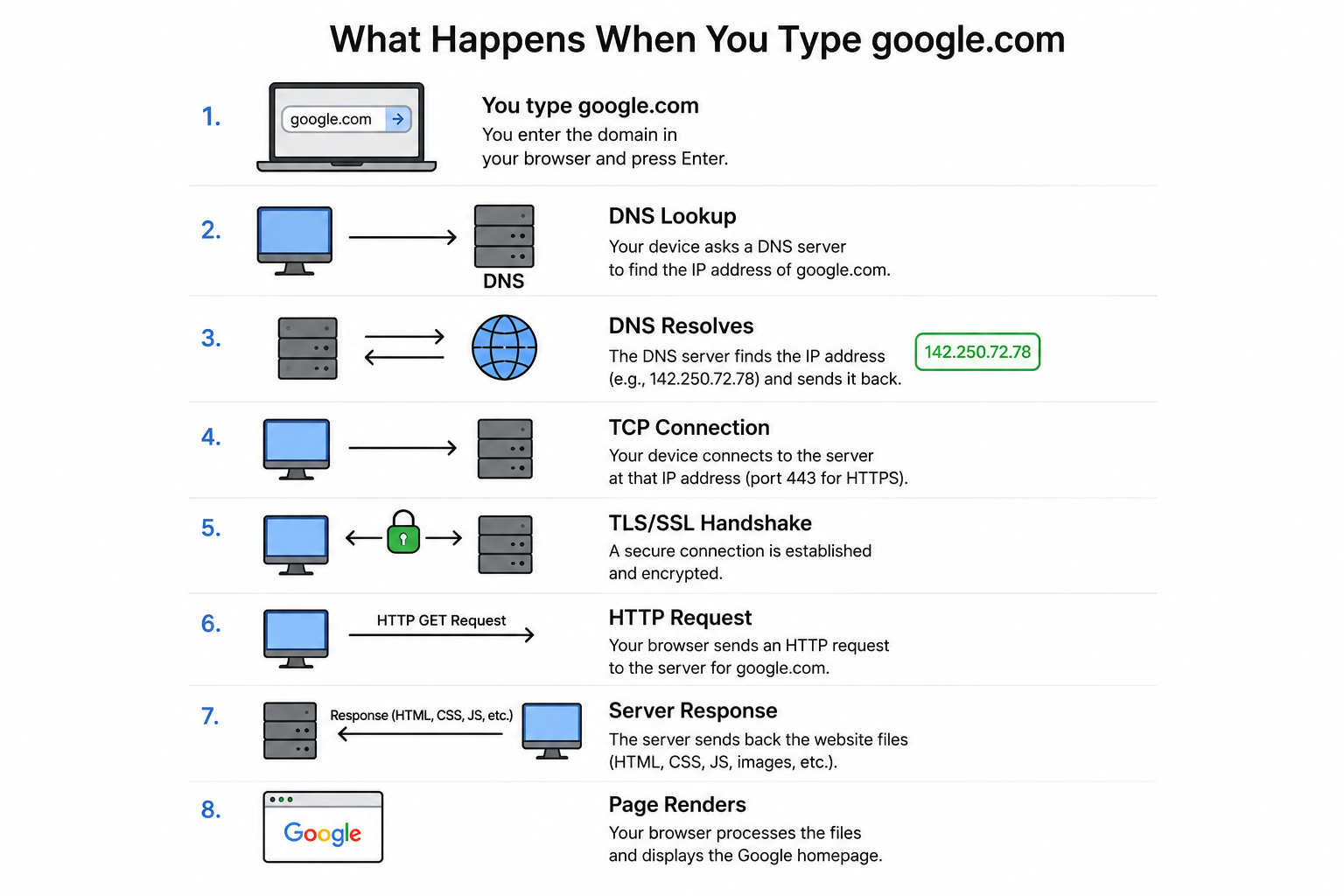

How DNS Resolution Works:
1. User types a domain name in the browser.
2. Browser checks its local cache.
3. If not found, queries the Recursive Resolver (usually ISP).
4. Resolver queries the Root Name Server.
5. Root server directs to the TLD Name Server (.com, .org, etc.).
6. TLD server directs to the Authoritative Name Server.
7. Authoritative server returns the IP address.
8. Browser connects to the server at that IP.
Analogy:
•DNS is like the internet's phonebook — you look up a name and get the corresponding address.
Figure 24: ★ DNS Resolution Process
25
What is the primary function of a DNS server?
CloudflareAmazonGoogleMicrosoftAkamai
Solution
The Domain Name Server (DNS) translates domain names and hostnames into IP addresses and vice versa.
Primary Functions:
Name Resolution:
•Converts human-readable domain names (e.g., `google.com`) into machine-readable IP addresses.
•Allows browsers to locate and connect to the correct web server.
Reverse DNS Lookup:
•Resolves an IP address back to a domain name.
•Used for logging, security, and email verification.
Load Distribution:
•Can return multiple IP addresses for a single domain name, distributing traffic across servers (DNS-based load balancing).
Global Management:
•A global network of DNS servers manages domain name assignments and mappings.
•Designates authoritative name servers for each domain.
•Organizes two main namespaces: the domain name hierarchy and the IP address space.
Caching:
•DNS servers cache resolved queries for a period (TTL — Time to Live) to speed up future requests and reduce DNS lookup traffic.
Example:
•When you type `youtube.com`, the DNS server resolves it to an IP like `142.250.80.78` so your browser can connect.
Figure 25: ★ DNS Server Functions
26
What protocol and port number does DNS use?
CiscoCloudflareAmazonGoogleTCS
Solution
DNS uses both TCP and UDP protocols, operating on port 53.
UDP (User Datagram Protocol) — Primary:
•DNS primarily uses UDP on port 53 for standard queries.
•UDP is preferred because it is faster and has lower overhead.
•Most DNS queries are small enough to fit in a single UDP packet.
TCP (Transmission Control Protocol) — Secondary:
•DNS uses TCP on port 53 for:
- Zone transfers — when DNS servers replicate their databases.
- Large responses that exceed 512 bytes (the UDP limit for DNS).
- DNSSEC — when DNS responses include security extensions.
Key Points:
•Port 53 is reserved exclusively for DNS.
•Both TCP and UDP on port 53 are treated as separate — they can both operate simultaneously.
•Modern DNS (DNS over HTTPS / DNS over TLS) also uses port 443 and port 853 respectively for encrypted DNS queries.
Example:
•A typical DNS lookup (e.g., resolving `google.com`) uses UDP port 53 for speed.
•A DNS zone transfer between two name servers uses TCP port 53 for reliability.
27
What is the TCP protocol?
CiscoAmazonGoogleMicrosoftTCS
Solution
TCP (Transmission Control Protocol) is a core protocol of the Internet Protocol Suite that defines how computers establish a connection and transmit data reliably over a network.
Key Characteristics:
•Connection-Oriented: Creates a virtual connection between devices before data transfer.
•Reliable: Guarantees delivery of data packets in the correct order.
•Error Checking: Detects and retransmits lost or corrupted packets.
•Flow Control: Prevents the sender from overwhelming the receiver.
•Congestion Control: Adjusts transmission rate based on network conditions.

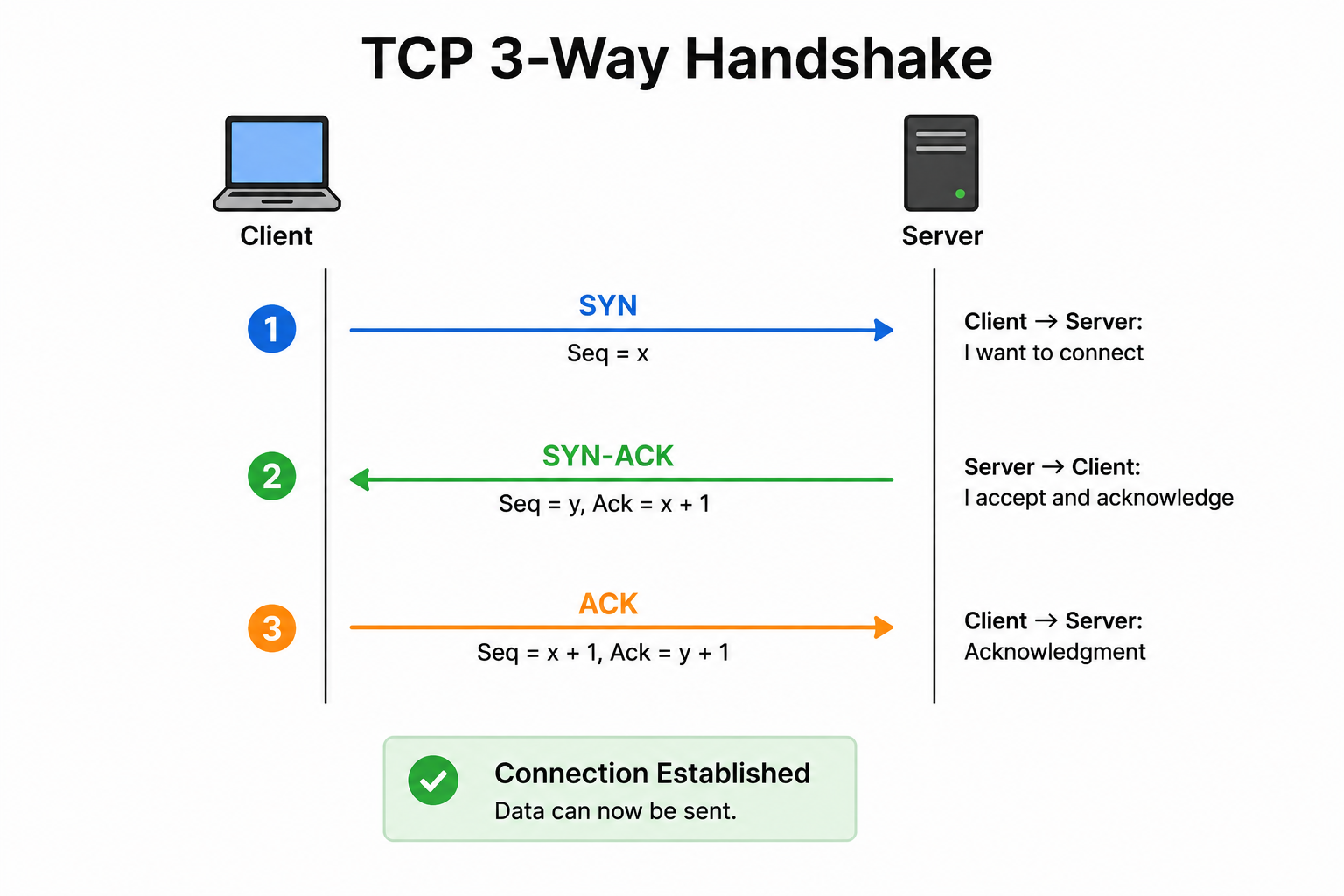

Three-Way Handshake:
TCP establishes connections using a three-way handshake:
1. SYN — Client sends a synchronization request.
2. SYN-ACK — Server acknowledges and responds.
3. ACK — Client acknowledges, connection established.
Common Use Cases:
•Web browsing (HTTP/HTTPS)
•Email (SMTP, POP3, IMAP)
•File transfers (FTP)
•Any application requiring reliable, ordered data delivery.
Trade-off:
•TCP's reliability mechanisms make it slower than UDP but more suitable for accuracy-critical applications.
Figure 27: ★ TCP Protocol Characteristics
28
What is the UDP protocol?
CiscoAmazonGoogleNetflixTCS
Solution
UDP (User Datagram Protocol) is a connectionless transport protocol that operates using datagrams.
Key Characteristics:
•Connectionless: Transmits data without establishing a connection first.
•No Reliability: Does not guarantee delivery — packets may be lost.
•No Error Checking: Does not perform error verification or retransmission.
•No Ordering: Packets may arrive out of order.
•Lightweight: Minimal overhead makes it faster than TCP.
•Primarily used for multicasting and broadcasting.
How UDP Works:
•Sender simply sends packets to the destination without handshaking.
•No acknowledgment from receiver — fire and forget approach.
Common Use Cases:
•Live video/audio streaming — speed matters more than perfect delivery.
•Online gaming — low latency is critical.
•VoIP — real-time voice communication.
•DNS queries — small, fast lookups.
•DHCP — network configuration broadcasts.
Trade-off:
•UDP sacrifices reliability for speed and low latency.
•Suitable when occasional data loss is acceptable but delay is not.
29
How do TCP and UDP compare?
CiscoAmazonGoogleMicrosoftNetflix
Solution
TCP vs UDP — Key Comparisons:
Connection:
•TCP is connection-oriented — establishes a connection via 3-way handshake.
•UDP is connectionless — sends data without establishing a connection.
Reliability:
•TCP provides higher reliability — guarantees delivery and ordering.
•UDP is less reliable — no delivery guarantee.
Speed:
•TCP has slower transmission due to overhead.
•UDP transmits faster with minimal overhead.
Packet Order:
•TCP preserves packet order using sequence numbers.
•UDP packets are independent and unordered.
Error Checking:
•TCP supports error checking and retransmission.
•UDP does not perform error checking.
Packet Size:
•TCP packets are heavier with more header information.
•UDP packets are lightweight.
Use Cases:
•TCP: HTTP, FTP, SMTP — accuracy-critical applications.
•UDP: DNS, RIP, video streaming, gaming — speed-critical applications.
Summary: Use TCP when accuracy matters; use UDP when speed matters.
30
What is the function of the ICMP protocol?
CiscoAmazonGoogleCloudflareMicrosoft
Solution
ICMP (Internet Control Message Protocol) operates at the Network Layer and is used primarily for error reporting and network diagnostics.
Primary Functions:
Error Reporting:
•Notifies the sender when data packets cannot reach their destination.
•Reports issues like unreachable hosts, networks, or ports.
Network Diagnostics:
•Helps routers and devices detect network issues.
•Verifies if data packets reach their destination.
Key Tools Using ICMP:
Ping:
•Sends ICMP Echo Request messages to a host.
•Measures round-trip time and verifies connectivity.
•Example: `ping google.com`
Traceroute:
•Uses ICMP to trace the path packets take from source to destination.
•Identifies each hop and measures latency at each step.
Key Characteristics:
•ICMP typically uses port 7 (echo port).
•Unlike TCP and UDP, ICMP is not used for data transfer between applications.
•It is a supporting protocol for IP, helping manage network communication.
Security Note:
•ICMP can be exploited in Ping of Death and ICMP flood (Smurf) attacks — hence some firewalls block ICMP traffic.
31
What does the DHCP protocol do?
CiscoMicrosoftAmazonTCSInfosys
Solution
DHCP (Dynamic Host Configuration Protocol) is an Application Layer protocol that automatically assigns IP addresses and other network settings to devices on an IP network.
Primary Function:
•Eliminates the need for manual IP address configuration.
•Facilitates device communication by automatically providing:
- IP Address
- Subnet Mask
- Default Gateway
- DNS Server addresses
DHCP servers usually operate on port 67 (server) and port 68 (client).

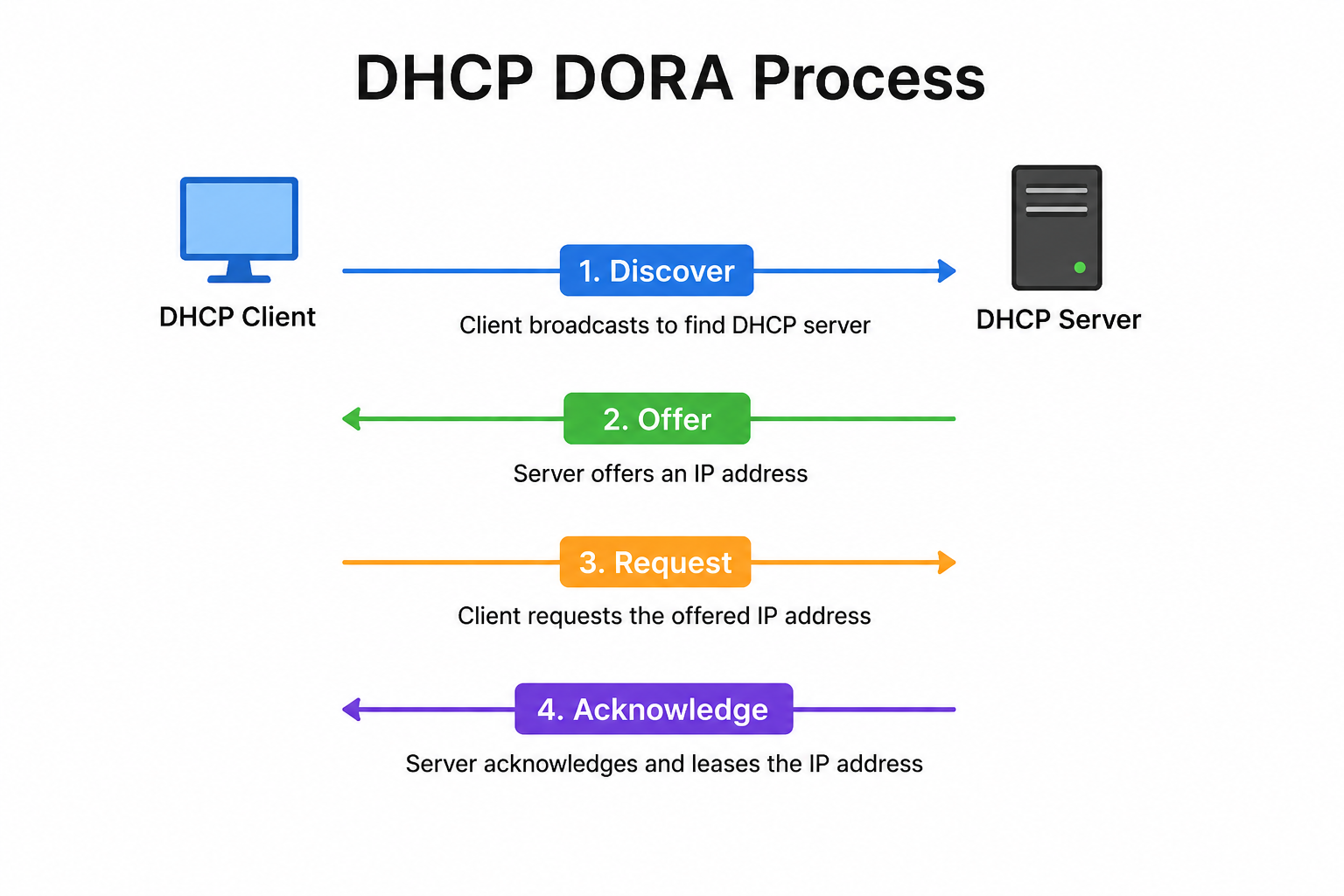

How DHCP Works (DORA Process):
1. Discover — Client broadcasts a request for an IP address.
2. Offer — DHCP server offers an available IP address.
3. Request — Client requests the offered IP address.
4. Acknowledge — Server confirms the assignment.
Key Benefits:
•Centralized management of IP addresses.
•Prevents IP conflicts by tracking assigned addresses.
•Reduces administrative overhead — no manual configuration needed.
IP Lease:
•DHCP assigns IPs for a limited time (lease period).
•Devices renew their lease before it expires.
32
What is the role of the ARP protocol?
CiscoAmazonMicrosoftTCSInfosys
Solution
ARP (Address Resolution Protocol) is a network protocol that maps a device's logical IP address to its physical MAC address.
Primary Role:
•Helps devices communicate over local networks by resolving IP addresses to hardware (MAC) addresses.
•Bridges the gap between Layer 3 (Network Layer — IP) and Layer 2 (Data Link Layer — MAC).

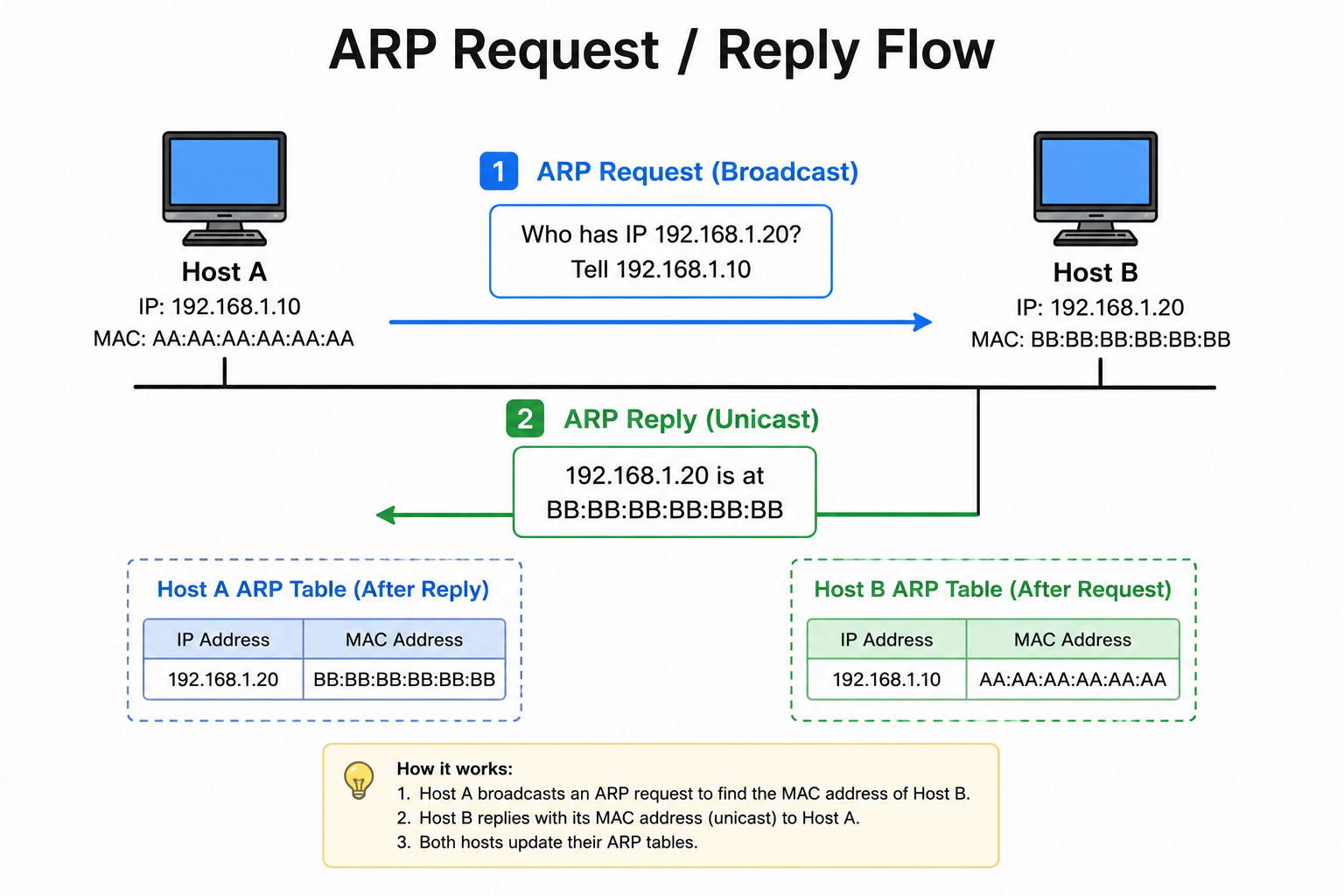

How ARP Works:
1. Device A wants to communicate with Device B on the same network.
2. Device A knows Device B's IP address but not its MAC address.
3. Device A broadcasts an ARP Request: "Who has IP 192.168.1.5?"
4. Device B responds with an ARP Reply: "I have that IP, my MAC is XX:XX:XX:XX:XX:XX."
5. Device A stores the mapping in its ARP cache for future use.
ARP Cache:
•Stores recently resolved IP-to-MAC mappings.
•Reduces network traffic by avoiding repeated ARP broadcasts.
•Entries expire after a TTL period.
Security Concern:
•ARP Spoofing/Poisoning — attackers send fake ARP replies to redirect traffic.
•Can lead to Man-in-the-Middle attacks.
Figure 32: ★ ARP Protocol Operation
33
What is the FTP protocol used for?
CiscoAmazonMicrosoftTCSWipro
Solution
FTP (File Transfer Protocol) is an Application Layer protocol enabling reliable and efficient file transfers between hosts over a TCP/IP network.
Primary Use:
•Commonly used to download files from remote servers to local computers.
•Also used to upload files to remote servers.
•Operates on port 21 for control commands and port 20 for data transfer.
Note: The answer document mentions port 27, but the standard FTP control port is port 21.
How FTP Works:
•Uses two separate connections:
- Control Connection (Port 21): Sends commands and receives responses.
- Data Connection (Port 20): Transfers the actual file data.
Two Modes:
•Active Mode: Server initiates the data connection to the client.
•Passive Mode: Client initiates both connections — useful when firewalls block incoming connections.
Security:
•Standard FTP transmits data in plain text — not secure.
•FTPS (FTP Secure) adds SSL/TLS encryption.
•SFTP (SSH File Transfer Protocol) uses SSH for secure transfers.
Common Use Cases:
•Website file management (uploading web pages).
•Software distribution and file sharing.
•Backup and archiving files to remote servers.
34
What services does the Application Layer provide in the Internet model?
CiscoAmazonGoogleMicrosoftTCS
Solution
The Application Layer in the Internet (TCP/IP) model is the topmost layer that directly interacts with end-user applications and provides a wide range of network services.
Services Provided:
Mail Services:
•Handles sending, receiving, and storing emails.
•Protocols: SMTP (sending), POP3 (downloading), IMAP (server-based access).
Directory Services:
•Provides a way to look up information about network resources.
•Protocol: LDAP (Lightweight Directory Access Protocol).
File Transfer:
•Enables uploading and downloading of files between hosts.
•Protocol: FTP, SFTP, TFTP.
Access Management:
•Controls and manages user access to network resources.
•Protocol: RADIUS, TACACS+.
Network Virtual Terminal:
•Allows users to log in to remote hosts and use them as if locally connected.
•Protocol: Telnet, SSH.
Additional Services:
•Web browsing — HTTP/HTTPS.
•Domain name resolution — DNS.
•Network time synchronization — NTP.
•Dynamic IP assignment — DHCP.
35
Why is the POP3 protocol necessary for email?
GoogleMicrosoftAmazonTCSInfosys
Solution
POP3 (Post Office Protocol version 3) is widely adopted by email clients as a standard method to access mailboxes and download messages.
Primary Necessity:
•Allows users to retrieve emails to their local device so they can read messages offline without needing continuous internet access.
How POP3 Works:
1. Email client connects to the POP3 server on port 110 (or port 995 for POP3S).
2. User authenticates with username and password.
3. Client downloads all new emails from the server to the local device.
4. By default, emails are deleted from the server after download.
Why POP3 is Necessary:
Offline Access:
•Users can read emails even without an internet connection after downloading.
Storage Management:
•Emails are stored locally, freeing server storage space.
Simplicity:
•Simple protocol, easy to implement and use.
POP3 vs IMAP:
•POP3 downloads and (usually) deletes from server — single device use.
•IMAP keeps emails on the server — access from multiple devices.
Modern Usage:
•POP3 is less common today as IMAP is preferred for multi-device access, but it remains relevant for single-device, offline-first email setups.
36
What is a MAC address, and how is it connected to the Network Interface Card (NIC)?
CiscoAmazonMicrosoftTCSInfosys
Solution
A MAC (Media Access Control) address is a unique 48-bit or 64-bit identifier assigned to devices on a network.
Key Characteristics:
•Also referred to as the physical address or hardware address.
•Written in hexadecimal format, typically displayed as: `00:1A:2B:3C:4D:5E`
•Globally unique — no two network devices should have the same MAC address.
•Operates at the Data Link Layer (Layer 2) of the OSI model.
Connection to NIC:
•The MAC address is embedded (burned) into the Network Interface Card (NIC) during manufacturing.
•The NIC is the hardware component that enables a device to connect to a network.
•The MAC address is stored in the NIC's ROM (Read-Only Memory).
•Every NIC has a unique MAC address assigned by the manufacturer.
Structure of MAC Address:
•First 3 bytes (OUI): Identifies the manufacturer (assigned by IEEE).
•Last 3 bytes: Unique identifier assigned by the manufacturer for each device.
Usage:
•Used for device identification on a local network.
•Used in ARP to map IP addresses to physical addresses.
•Used in switching to forward frames to the correct device.
37
How does a MAC address differ from an IP address?
CiscoAmazonGoogleMicrosoftTCS
Solution
MAC Address vs IP Address — Key Differences:
Full Form:
•MAC: Media Access Control address.
•IP: Internet Protocol address.
Size:
•MAC: 6 bytes (48-bit) or 8 bytes (64-bit) hexadecimal value.
•IP: 4 bytes (IPv4) or 16 bytes (IPv6).
Assignment:
•MAC: Embedded in the NIC by the manufacturer — permanent hardware address.
•IP: Assigned by the network (statically or dynamically via DHCP).
Type:
•MAC: Physical address — tied to the hardware.
•IP: Logical address — tied to the network location.
OSI Layer:
•MAC: Operates at the Data Link Layer (Layer 2).
•IP: Functions at the Network Layer (Layer 3).
Scope:
•MAC: Identifies devices on the local network (LAN).
•IP: Identifies device connectivity on wider networks (Internet).
Changeability:
•MAC: Generally fixed (though can be spoofed).
•IP: Can change based on network or DHCP assignment.
Format:
•MAC: `00:1A:2B:3C:4D:5E` (hexadecimal).
•IP: `192.168.1.1` (decimal, IPv4).

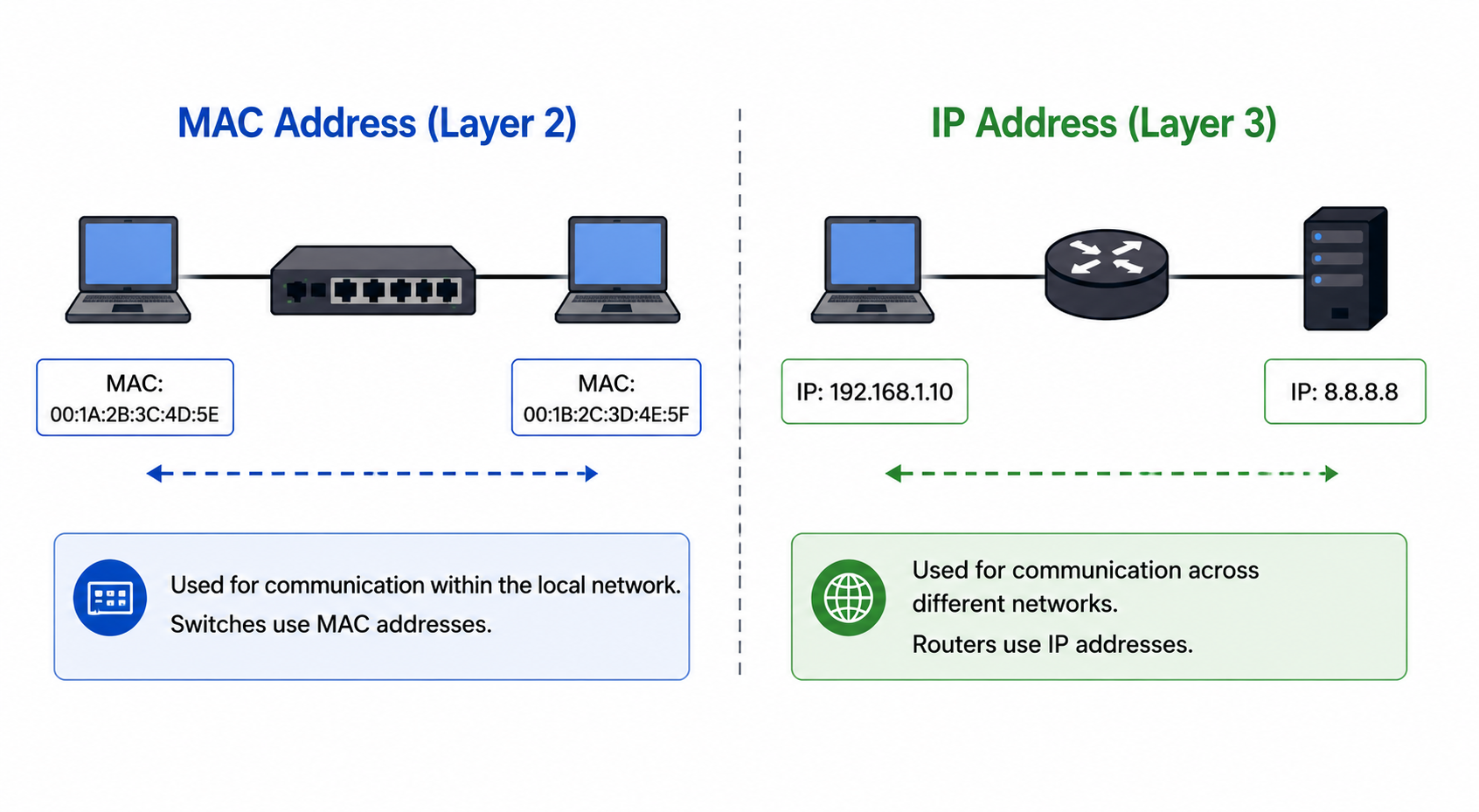

Figure 37: ★ MAC Address vs IP Address
38
What is a subnet?
CiscoAmazonGoogleMicrosoftTCS
Solution
A subnet is a segmented portion of a larger network created through subnetting — the process of dividing a network into smaller sub-networks.
Primary Purpose:
•Enhances routing efficiency by reducing the size of routing tables.
•Improves network security by isolating traffic within subnet boundaries.
•Reduces network congestion by containing broadcast traffic within subnets.
How Subnetting Works:
•Uses a subnet mask to determine which portion of an IP address identifies the network and which identifies the host.
•CIDR (Classless Inter-Domain Routing) notation represents subnets concisely — e.g., `192.168.1.0/24`.
Example:
•Network: `192.168.1.0/24` can be divided into:
- Subnet 1: `192.168.1.0/25` (hosts: .1 to .126)
- Subnet 2: `192.168.1.128/25` (hosts: .129 to .254)
Benefits:
•Security: Different departments can be isolated (e.g., HR, Finance, IT).
•Performance: Reduces broadcast domain size.
•IP Management: More efficient use of IP address space.
•Troubleshooting: Easier to isolate network issues within subnets.

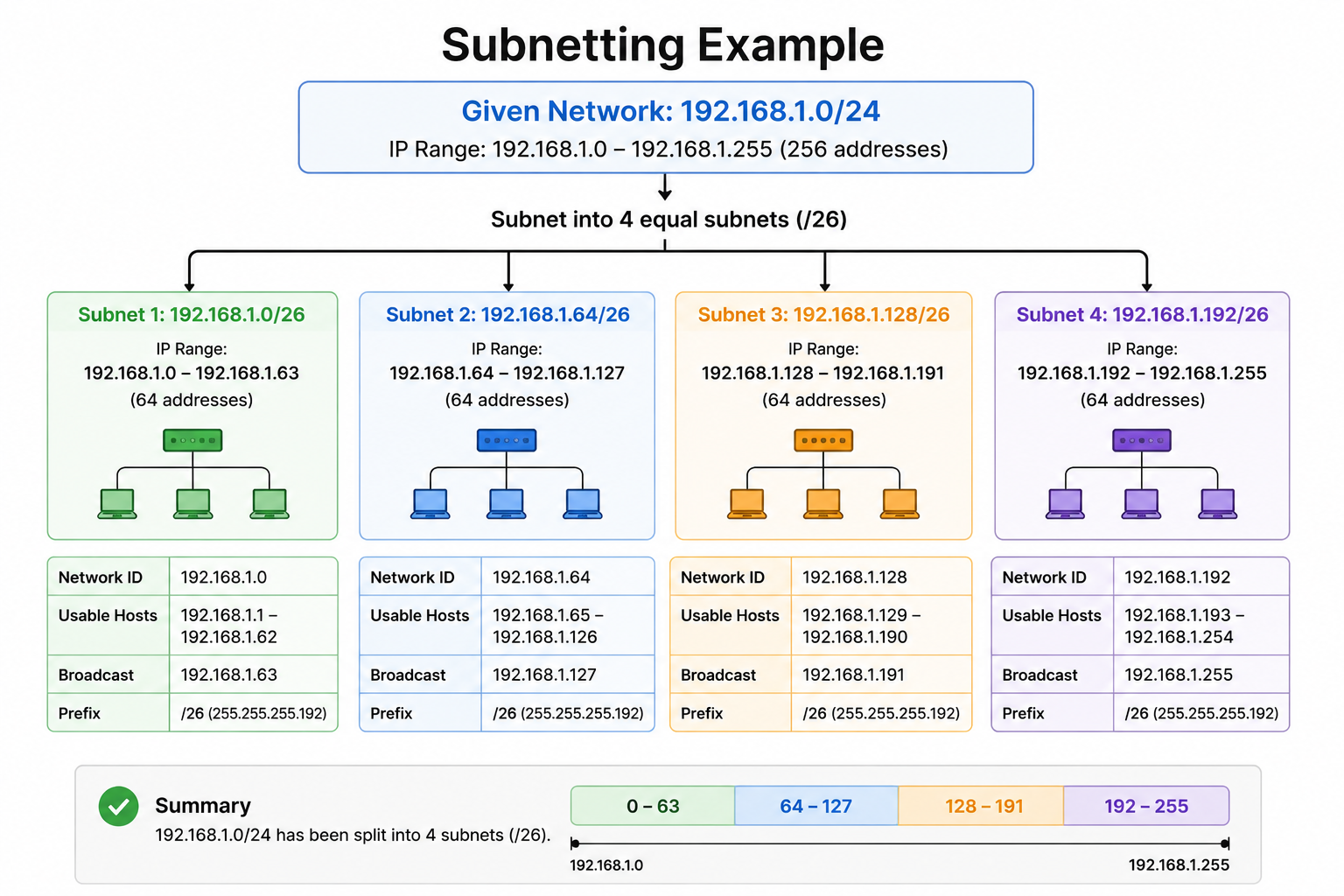

Figure 38: ★ Subnetting Process
39
What are the differences between a hub and a switch?
CiscoAmazonMicrosoftTCSInfosys
Solution
Hub vs Switch — Key Differences:
OSI Layer:
•Hub operates at the Physical Layer (Layer 1).
•Switch functions at the Data Link Layer (Layer 2).
Transmission Mode:
•Hub transmission is half-duplex — cannot send and receive simultaneously.
•Switch supports full-duplex communication — can send and receive at the same time.
Connectivity:
•Hub connects Ethernet devices in a network.
•Switch connects LAN devices intelligently.
Intelligence:
•Hubs are simpler and less intelligent — broadcast data to all ports.
•Switches are smarter — forward data only to the intended recipient using MAC address tables.
Administration:
•Hubs lack administration software.
•Switches provide management capabilities and can be configured.
Speed:
•Hubs support speeds up to 100 Mbps.
•Switches support gigabit speeds (1 Gbps and beyond).
Collision Handling:
•Hubs are less efficient as they cannot prevent collisions — all devices share bandwidth.
•Switches significantly reduce or avoid collisions using separate collision domains per port.
Cost:
•Hubs are more affordable.
•Switches are more expensive but far more efficient.
40
What is the purpose of a router, and how does it differ from a gateway?
CiscoAmazonGoogleMicrosoftTCS
Solution
Router:
•A device that connects multiple network segments and directs data traffic between them.
•Transfers data (web pages, emails, videos) in packet form from source to destination.
•Operates at the Network Layer (Layer 3) of the OSI model.
•Makes forwarding decisions based on IP addresses and routing tables.
•Connects networks using the same protocol (typically TCP/IP).
Gateway:
•Also routes and regulates traffic but can interconnect different network types.
•Unlike routers which connect similar networks, gateways connect networks using different protocols or architectures.
•Operates at multiple OSI layers (up to Layer 7).
•Acts as a protocol converter — translates between different network protocols.
Key Differences:
| Feature | Router | Gateway |
|---|---|---|
| Protocol | Same protocol | Different protocols |
| OSI Layer | Layer 3 | Multiple layers |
| Function | Routes packets | Translates protocols |
| Complexity | Simpler | More complex |
Example:
•A router connects your home network to your ISP's network (both use TCP/IP).
•A gateway connects a corporate TCP/IP network to a legacy IBM SNA network.
Figure 40: ★ Router vs Gateway
41
How do the commands ipconfig and ifconfig differ?
MicrosoftCiscoTCSInfosysWipro
Solution
ipconfig vs ifconfig — Key Differences:
ipconfig (Internet Protocol Configuration):
•Used in Microsoft Windows operating systems.
•Displays and manages network interface configuration.
•Common commands:
- `ipconfig` — displays basic IP configuration.
- `ipconfig /all` — shows detailed network info including MAC address.
- `ipconfig /release` — releases current DHCP IP address.
- `ipconfig /renew` — renews DHCP IP address.
- `ipconfig /flushdns` — clears DNS cache.
ifconfig (Interface Configuration):
•Used in UNIX, Linux, and macOS operating systems.
•Similar purpose — view and configure network interfaces.
•Common commands:
- `ifconfig` — displays all active network interfaces.
- `ifconfig eth0` — shows configuration for a specific interface.
- `ifconfig eth0 up/down` — enables or disables an interface.
Common Features:
•Both provide TCP/IP configuration summaries.
•Both allow changes to DHCP and DNS settings.
•Both display IP address, subnet mask, and MAC address.
Modern Note:
•On newer Linux systems, `ifconfig` is being replaced by the `ip` command (e.g., `ip addr show`).
42
What is a firewall, and what does it do?
CiscoPalo AltoCloudflareAmazonMicrosoft
Solution
A firewall is a network security system designed to monitor and control incoming and outgoing network traffic based on predefined security rules.
Primary Function:
•Acts as a barrier between a private network and the public Internet.
•Blocks unauthorized access while permitting legitimate traffic.
•Can be hardware, software, or a combination of both.
How a Firewall Works:
•Inspects data packets and compares them against a rule set.
•Allows or denies traffic based on:
- Source/Destination IP address
- Port numbers
- Protocols (TCP, UDP)
- Application type (NGFW)
Types of Firewalls:
Packet Filtering:
•Inspects packets at the Network Layer based on IP/port rules.
Stateful Inspection:
•Tracks active connections and allows only legitimate session traffic.
Application Layer (Proxy) Firewall:
•Inspects traffic at the Application Layer for deep content filtering.
Next-Generation Firewall (NGFW):
•Combines traditional firewall with IPS, application awareness, and user identity tracking.
•Used by Palo Alto, Cisco, Fortinet.
Benefits:
•Prevents unauthorized access and cyberattacks.
•Protects against malware, DoS attacks, and intrusions.
43
What do the terms unicasting, anycasting, multicasting, and broadcasting mean?
CiscoAmazonGoogleAkamaiTCS
Solution
These terms describe different methods of transmitting data from a source to one or more destinations in a network.
Unicasting:
•Sending a message from a source to a single specific node.
•One-to-one communication.
•Commonly used for direct connections like web browsing and file downloads.
•Example: Loading a webpage — your browser sends a request to one specific server.
Anycasting:
•Sending a message to any one node within a group — typically the nearest one.
•One-to-nearest communication.
•Used in Content Delivery Networks (CDNs) to retrieve data from the nearest server.
•Example: Cloudflare uses anycast to route users to the nearest data center.
Multicasting:
•Sending a message to a selected group of nodes simultaneously.
•One-to-many communication (specific group).
•Used in video conferencing, IPTV, and online gaming.
•Example: A live video stream sent to all subscribed users.
Broadcasting:
•Sending a message to all nodes within a network.
•One-to-all communication.
•Protocols like DHCP and ARP utilize broadcasting within local networks.
•Example: DHCP discovery message sent to all devices on the network.
44
What do confidentiality, integrity, and availability (CIA) represent in security?
CiscoPalo AltoAmazonMicrosoftGoogle
Solution
The CIA Triad represents the three core principles of information security.
Confidentiality:
•Ensures that information is accessible only to authorized individuals or systems.
•Protects sensitive data from unauthorized access or disclosure.
•Implemented through: encryption, access controls, authentication.
•Example: If a password is observed during login, confidentiality is compromised.
Integrity:
•Maintains the accuracy and completeness of data, preventing unauthorized modifications.
•Ensures data has not been tampered with or corrupted.
•Implemented through: hashing, digital signatures, checksums.
•Example: Updating employee status accurately only by authorized personnel reflects data integrity.
Availability:
•Guarantees that information is accessible when needed by authorized users.
•Ensures systems and data are operational and accessible at all times.
•Implemented through: redundancy, backups, disaster recovery, DDoS protection.
•Example: Attacks like Denial of Service (DoS) impair availability by preventing access to data.
Why CIA Matters:
•Forms the foundation of all security policies and frameworks.
•Every security control and measure maps back to protecting one or more of these three principles.
45
What is IP spoofing?
CiscoPalo AltoCloudflareAmazonMicrosoft
Solution
IP Spoofing is a hacking technique where attackers disguise their IP addresses to gain unauthorized access to systems or launch attacks while hiding their true identity.
How It Works:
•The attacker creates IP packets with a forged source IP address.
•The forged address makes the packets appear to come from a trusted or legitimate source.
•This tricks the target system into accepting the malicious packets.
History:
•Initially discussed academically in the 1980s.
•Exploits weaknesses in the TCP protocol's sequence prediction.
Common Uses of IP Spoofing:
DoS/DDoS Attacks:
•Attackers send massive amounts of traffic from spoofed IPs to overwhelm a target.
•Used to hide the source of denial-of-service attacks.
Man-in-the-Middle Attacks:
•Intercepting communication between two parties by impersonating one of them.
Session Hijacking:
•Taking over an established network session.
Prevention:
•Packet filtering at routers and firewalls.
•Ingress filtering — ISPs blocking packets with spoofed source addresses.
•Cryptographic authentication protocols (IPSec).
•Deep packet inspection.
46
What do threat, vulnerability, and risk mean in cybersecurity?
CiscoPalo AltoAmazonMicrosoftGoogle
Solution
These three terms form the foundation of cybersecurity risk assessment.
Threat:
•Any potential cause that can exploit a vulnerability to cause harm to assets such as people, property, or information.
•Threats can be intentional (hackers, malware) or unintentional (natural disasters, human error).
•Examples: Malware, phishing attacks, insider threats, ransomware.
Vulnerability:
•A weakness or gap in security measures that can be exploited by a threat.
•Can exist in software, hardware, processes, or human behavior.
•Examples: Unpatched software, weak passwords, misconfigured firewalls, open ports.
Risk:
•The potential for loss or damage, arising from the combination of assets, threats, and vulnerabilities.
•Represented as: Risk = Asset + Threat + Vulnerability (A + T + V = R)
•Risk quantifies the likelihood and impact of a threat exploiting a vulnerability.
Relationship:
•A vulnerability without a threat poses no risk.
•A threat without a vulnerability cannot cause harm.
•Risk exists when both a threat and a vulnerability are present.
Example:
•Vulnerability: Unpatched web server.
•Threat: Hacker attempting SQL injection.
•Risk: Potential data breach from the combination.
47
How does an Intrusion Prevention System (IPS) differ from a firewall?
CiscoPalo AltoCloudflareAmazonMicrosoft
Solution
Intrusion Prevention System (IPS):
•Monitors network and system activities to detect and actively prevent malicious behavior.
•Extends the functions of Intrusion Detection Systems (IDS) by not only identifying threats but also blocking them.
•Analyzes traffic content and patterns for known attack signatures.
•Can automatically block, drop, or alert on suspicious traffic.
•Operates inline — traffic passes through the IPS.
Firewall:
•Controls traffic based on predefined security rules (IP, port, protocol).
•Does not perform active threat detection — only enforces access policies.
•Acts as a barrier based on network parameters.
•Permits or denies traffic based on static rules.
Key Differences:
| Feature | IPS | Firewall |
|---|---|---|
| Function | Detects and prevents threats | Controls access based on rules |
| Traffic Analysis | Deep content inspection | Header-based inspection |
| Response | Active blocking | Rule-based allow/deny |
| Threat Detection | Yes | No |
| Position | Inline with traffic | Network perimeter |
Modern Note:
•Next-Generation Firewalls (NGFW) like Palo Alto combine firewall and IPS functionality into a single device.
48
What is the difference between symmetric and asymmetric encryption?
GoogleAmazonMicrosoftCloudflarePalo Alto
Solution
Symmetric Encryption:
•Uses a single key for both encryption and decryption.
•The same key must be shared between sender and receiver.
•Easier and faster to use — lower computational overhead.
•Less secure due to key distribution challenges — securely sharing the key is difficult.
•Best for encrypting large amounts of data.
•Examples: AES (Advanced Encryption Standard), DES, 3DES.
•Use cases: File encryption, disk encryption, VPN tunnels.
Asymmetric Encryption:
•Uses a pair of keys — a public key (for encryption) and a private key (for decryption).
•The public key can be shared openly; the private key is kept secret.
•Offers higher security — no need to share the private key.
•Computationally slower due to complex mathematical operations.
•Best for key exchange and digital signatures.
•Examples: RSA, ECC (Elliptic Curve Cryptography), DSA.
•Use cases: HTTPS (SSL/TLS), digital certificates, email encryption (PGP).
How They Work Together:
•In practice, HTTPS uses both — asymmetric encryption to securely exchange a symmetric session key, then symmetric encryption for the actual data transfer (faster).
Figure 48: ★ Symmetric vs Asymmetric Encryption
49
What is a zone-based firewall?
CiscoPalo AltoCheck PointAmazonMicrosoft
Solution
A Zone-Based Firewall is an advanced stateful firewall that organizes network interfaces into security zones and controls traffic between them based on policies.
Key Characteristics:
•Maintains a database recording source and destination IP addresses and port numbers.
•Permits only traffic initiated from inside the network and the corresponding replies from outside.
•Traffic between zones is denied by default unless explicitly permitted by a policy.
How it Works:
•Network interfaces are assigned to zones (e.g., Inside, Outside, DMZ).
•Security policies are defined between zone pairs rather than individual interfaces.
•Only traffic matching an explicit allow policy between zones is permitted.
Cisco Implementation:
•Cisco IOS routers can be configured as firewalls using:
- CBAC (Context-Based Access Control) — older method.
- Zone-Based Firewall (ZBF) — newer, simplified approach.
•ZBF simplifies administration compared to CBAC.
Common Zones:
•Inside Zone: Trusted internal network.
•Outside Zone: Untrusted external network (Internet).
•DMZ (Demilitarized Zone): Semi-trusted zone for public-facing servers.
Advantage:
•More scalable and manageable than traditional ACL-based firewalls.
50
What happens technically when you type google.com into a web browser?
GoogleAmazonMicrosoftCloudflareFlipkart
Solution
When you enter `google.com` in a browser, the following steps occur:
1. Cache Check:
•The browser checks its local cache for fresh content and displays it if available.
2. DNS Resolution:
•If not cached, the browser checks for the IP in its own cache and OS cache.
•If absent, it sends a DNS lookup request via UDP to the configured DNS server.
•The DNS server resolves `google.com` to an IP address (e.g., `142.250.80.78`).
3. TCP Connection:
•A new TCP connection is established through a three-way handshake (SYN → SYN-ACK → ACK).
•If HTTPS, an additional TLS handshake occurs to establish an encrypted session.
4. HTTP Request:
•The browser sends an HTTP/HTTPS GET request over the established connection.
5. Server Response:
•Google's web server processes the request and sends back an HTTP response with HTML, CSS, JS content.
6. Connection Management:
•The browser optionally closes or reuses the TCP connection (HTTP keep-alive).
7. Caching:
•If the response is cacheable, it stores it for future use.
8. Rendering:
•The browser decodes and renders the web page content, making additional requests for images, scripts, and stylesheets as needed.
Figure 50: ★ DNS Resolution Process
